Lewis Bins DC2025-XL | Carton of 12

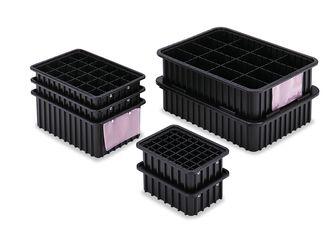

Multi-purpose ESD Safe Lewis Bins Divider Boxes Containers can be divided into compartments on 1.25" centers with easy-to-add dividers.
- Conforms to ANSI/ESD S20.20* 2007.
- Load capacity of 40 lbs.
- Optional length and width dividers available (sold separately).
- Optional covers available (sold separately).
- Two cardholder snaps included on box.
- Sold in cartons of 12
Ideal for electronics, telecommunications and computers. LewisBins ESD materials conform to ANSI/ESD S20.20* 2007 requirements for ESD packaging.
Materials conform to the static decay requirement of FTM101B, Method 4046.1 dissipating a 5,000 volt charge to 0 when grounded in less than two seconds.
Standards require conductive materials surface resistance to be < 1.0 x 104 ohms and dissipative materials to be >1.0 x 104 ohms to <1.0 x 1011 ohms when tested per EOS/ESD S11.11.
- Surface resistivity: < 1.0 x 10
- Surface resistance: < 1.0 x 10
- Static decay: < 2 seconds
- Temperature range: 40 degrees to 225 degrees.
Click here to view all Lewis Bins ESD Safe Bins and Containers
Container Dimensions
Container Dimensions
Outside Dimensions |
Inside Dimensions |
|
Length
|
16-1/2"
|
14-3/4"
|
Width
|
11"
|
9"
|
Height
|
2-1/2"
|
2-1/2"
|
Divider Configuration Details
Divider Configuration Details
DC1000 SERIES DIVIDER CONFIGURATION
- # of Divider Slots on Short Side: 5
- # of Divider Slots on Long Side: 7
- Divider compartments are 1.125" square.
DC2000 SERIES DIVIDER CONFIGURATION
- # of Divider Slots on Short Side: 7
- # of Divider Slots on Long Side: 11
- Divider compartments are 1.125" square.
DC3000 SERIES DIVIDER CONFIGURATION
- # of Divider Slots on Short Side: 11
- # of Divider Slots on Long Side: 15
- Divider compartments are 1.125" square.

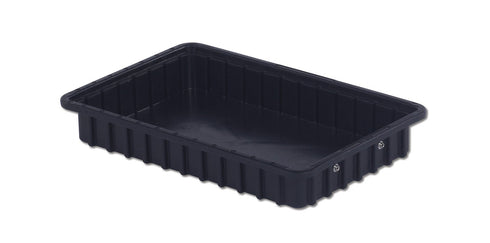

DC2025-XL | Carton of 12
ESD Safe Divider Box Containers from LewisBins.
16-1/2" Deep x 11" Wide x 2-1/2" High.
Sold in cartons of 12.
ESD safe divider box containers can be divided into compartments on 1.25" centers with long and short dividers. Ideal for storage, assembly, fabrication and distribution applications.
